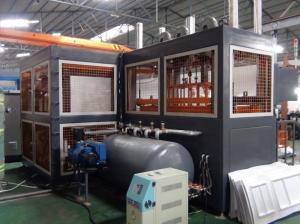

Refrigerator Manufacturing Assembly Line—2-Station Vacuum Forming Equipment
Quick Detail
• Dual-Station Design for simultaneous heating and forming operations
• Production Capacity: 8-12 cycles/hour (depending on liner size)
• Forming Accuracy: ±0.5mm dimensional tolerance
• Material Compatibility: HIPS, ABS, PP, and other thermoplastics
• Sheet Size Range: 1200×600mm to 2000×1200mm
• Vacuum Degree: Up to 95% vacuum efficiency
• Control System: PLC with touchscreen HMI
Description
Our 2-Station Vacuum Forming Equipment revolutionizes refrigerator liner production through its innovative parallel processing capability. The system features two fully synchronized workstations - while one station performs vacuum forming, the other simultaneously prepares the next sheet, achieving unmatched production efficiency. The precision-engineered heating chamber utilizes multi-zone infrared heating with ±2°C temperature control, ensuring perfect material plasticity before forming.
The forming station incorporates high-power vacuum pumps (up to 30kW) and precision-machined aluminum molds to create liners with perfect dimensional accuracy and surface finish. An integrated robotic cutting system automatically trims formed parts with ±0.3mm precision, while the advanced water-cooling circuit reduces cooling time by 35%. The entire process is controlled through an intelligent PLC system with recipe storage for different product specifications.
Applications
• Mass production of refrigerator/freezer interior liners
• Custom cabinet manufacturing for commercial refrigeration
• Multi-cavity forming for small refrigerator components
• Prototype development with quick mold change capability
• Energy-efficient appliance manufacturing
Competitive Advantage
✓ 40% Higher Output vs single-station systems
✓ 30% Energy Savings with optimized heating/vacuum systems
✓ Precision Automation reduces labor costs by 50%
✓ Flexible Configuration for various production scales
✓ 5-Year Durability guarantee on critical components
